For Sale: Unibox Mod-U-Lok 6m × 3m Modular Exhibition Stand (beMatrix-compatible)
For sale · Exhibition stand kit · Unibox Mod-U-Lok · UK-made · beMatrix-compatible
A complete, show-proven aluminium stand built by Unibox in 2024. It scales from a 6m × 3m showpiece down to 4m × 3m, 3m × 3m and 3m × 2m, with lit roof panels, a 2.48m lightbox tower, timber feature beams, lighting and furniture, and it joins directly to beMatrix frames.
Largest build: 6m × 3m
Also builds: 4×3 · 3×3 · 3×2m
Frame system: Mod-U-Lok, 62mm grid
Compatible with: beMatrix b62
One kit, every plot size
The same frames have been rebuilt to fit four different plots. Split-height walls (1,984 + 496mm), custom 186, 372, 434 and 558mm infill widths, and two roof systems mean every build fits the plot exactly.
Maximum build: 6m × 3m
FERMA 2024, Madrid (two stands joined). The rear wall runs 6,014mm, with a lightbox tower, green wall, timber beams and a lockable lightbox counter.
Built: 6m frontage, Madrid
Plan: 6m × 3m layout
Mid-size build: 4m × 3m
AIRMIC 2025, Liverpool. A 4m long wall (3,961mm of frames), an overhead downlit arch, two beMatrix SAM lights and the green wall.
Built: AIRMIC 2025
Plan: 4m × 3m layout
Compact build: 3m × 3m
AMRAE 2026. A 2,969mm frame run on a 3,000mm plot, with a beam roof, pendant lights and a setback lightbox. Swapping the two 434mm frames fits a smaller plot.
Built: AMRAE 2026
Plan: 3m × 3m layout
The kit also builds as a 3m × 2m stand: AIRMIC 2026, Birmingham, used a 3m long side and a 2m short side with a 1,984mm canopy roof.
Joins straight to beMatrix, with the same pins
Mod-U-Lok was chosen as a beMatrix equivalent. beMatrix first designed this same 6m stand (quote VO2401777, February 2024), and Unibox then built it in Mod-U-Lok (drawing UA47874, May 2024) on the same frame modules. Both systems share the 62mm connection grid and the same metric frame sizes, so the frames sit side by side and join with standard joining pins through the aligned holes.
Mod-U-Lok (this kit) | beMatrix b62 | |
Connection grid | 62mm centres | 62mm module |
Frame widths | 496 · 992 · 1,488 (+558, 744) | 496 · 992 · 1,488 (+558) |
Frame heights | 496 · 1,984 · 2,480 · 2,976 | 496 · 1,984 · 2,480 · 2,976 |
Same-size example | ML1S 0496 2480 | 606 0496 2480 |
Joining pins | Long pin ML1ALCP + M18 collar; short pin ML1ASCP + T-bolt | D30 M8 pin connectors |
Profile depth | 55mm | 62mm |
“Both Mod-U-Lok and Unibox System can be used in conjunction with other similar modular systems.” Unibox, Mod-U-Lok product brochure
Grow the stand with beMatrix frames, doors, LEDskin or lightboxes
Mix with contractor stock: beMatrix is widely held by stand builders across Europe
beMatrix accessories already fitted: four SAM lights used on these frames at AIRMIC 2025
Long connector pin + M18 collar (≈90) Short connecting pin, 35 × 74mm (≈80) beMatrix SAM lights ×4, in this kit beMatrix design of this 6m stand
The frame system: Unibox Mod-U-Lok
The stand was designed by Experio and manufactured by Unibox to drawing UA47874 (Rev B, May 2024). Every frame is a Mod-U-Lok assembly on the system’s 62mm CNC connection grid, so it reconfigures, extends and takes standard Unibox parts, which can still be ordered direct.
Manufacturer: Unibox United Aluminium Ltd, Greenside Way, Middleton, Manchester M24 1SQ · unibox.co.uk · +44 (0)161 655 2100
Mod-U-Lok is Unibox’s modular system of aluminium profiles, connectors and accessories for temporary and permanent structures. Standard frames run from 310 to 1,488mm wide and up to 2,976mm high, and everything joins on a precision 62mm grid with an Allen key. Unibox designs and makes the system in-house in Manchester, is a Made in Britain member and holds ISO 9001 and ISO 14001.
Why it was chosen: in a 2024 comparison against beMatrix and ISOframe, Mod-U-Lok matched beMatrix for rigidity, but its frames break down flat for storage and transport, and parts come from the UK with no customs.
Unibox drawing UA47874: plan, elevations and joint details. As-drawn footprint 3,964 × 2,976mm.
23 wall frames: standard ML1S sizes 496 to 1,488mm wide, plus custom 186, 372 and 434mm widths for exact plot fits
Split-height walls: 1,984mm + 496mm frames stack to 2,480mm, so a wall can run as one frame or two
Six roof frames (744 and 558mm widths) span a 2m or 3m roof run
Seamless 2-way TFS corner posts (×4) and four-way posts (×7), three with 620mm galvanised extensions that carry the timber beams
Double-sided SEG on both faces of every frame, with cables run inside the profile
Full hardware set: around 170 connector pins, roof plates, ceiling and patress brackets, in a Stanley FatMax case
Bare frame at build-up, showing the 62mm-grid profile and split-height walls
Roof options, lightboxes and lighting

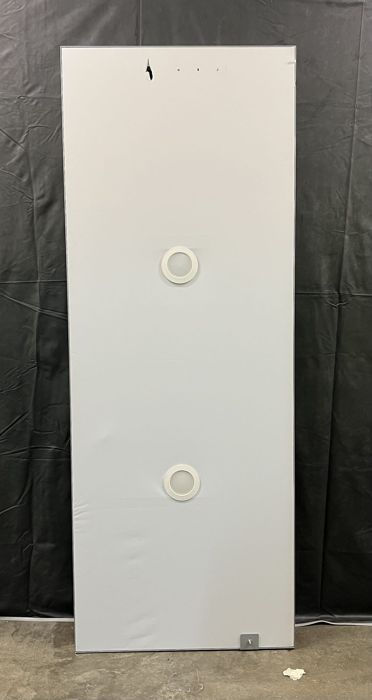

Roof type 1: Lit SEG ceiling, 2m–3m run
A 744 × 1,984mm Mod-U-Lok frame with a white, black-backed SEG ceiling and two pre-wired recessed downlights. A 744 × 744mm extension frame takes the run to 2,728mm for 3m stands.
Roof type 2: 558mm braced roof set
Four custom 558mm-wide frames (1,364, 1,612, 868 and 1,984mm). The 1,984mm frame is cross-braced into four cells, with three downlight cut-outs and a matching white SEG ceiling.
Feature roof: Oak-effect timber beams
Three 2,030mm and three 1,530mm hollow 100 × 100mm beams on Mod-U-Lok aluminium inserts, for 2.5m and 2m stands. Each is pre-drilled to drop a pendant light. End caps are included.

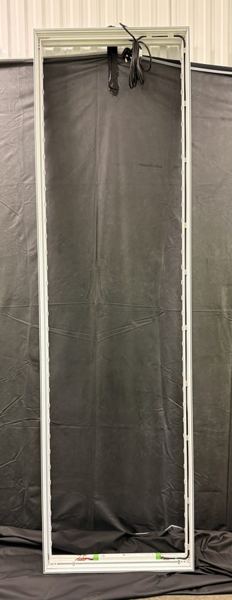

Lightbox: Unibox Ledge 150 lightbox tower
700 × 150 × 2,480mm, built by Unibox (drawing UA47899) in white RAL 9003 Ledge 150 profile, with a 12-bar LED backlight on a 200W 24V driver. It bolts into the four-way post.
Feature wall: Backlit logo slat wall
A Mod-U-Lok 496 × 2,480mm column clad in oak-effect slats, with a backlit cut-out logo, six RGBW COB strips on a 200W 24V IP67 supply, and a remote. Change the logo panel to rebrand it.
Counter: Lockable lightbox counter
1,100 × 500 × 1,052mm, white high-gloss. It houses a PIXLIP GO 1,000 × 1,000mm SEG lightbox, has lockable rear double doors, and breaks down into five parts for transport.
Illuminated cupboard table (Wrights Plastics): a 1,000 × 1,000mm frosted acrylic top lit by 10 LED strips, over a lockable storage cupboard.
Lighting package
18m RGBW COB LED surround with white diffusers, a 300W driver and colour remote: the blue halo in the show photos
Pendants: 3 Knightsbridge geometric cages, 5 braided-flex pendant sets and filament lamps
Overhead: 4 beMatrix SAM light units and 5 × 320mm wide-beam LED arm lights
Spares: Enlite / Aurora IP44 downlights, RGBW and white strip reels, drivers and controllers
What’s in the set
Ref | Item | Qty | Make / source |
|---|---|---|---|
Frames & structure · Unibox Mod-U-Lok | |||

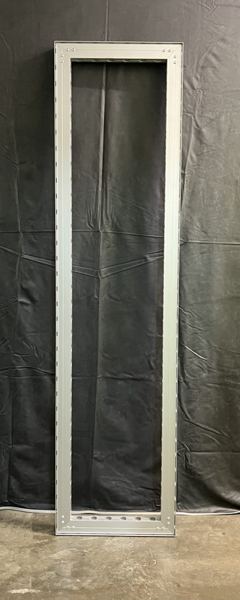

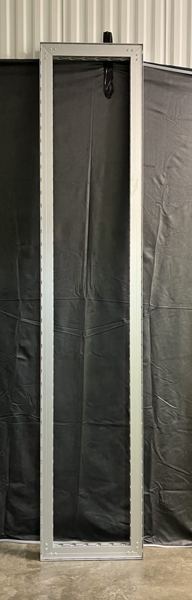

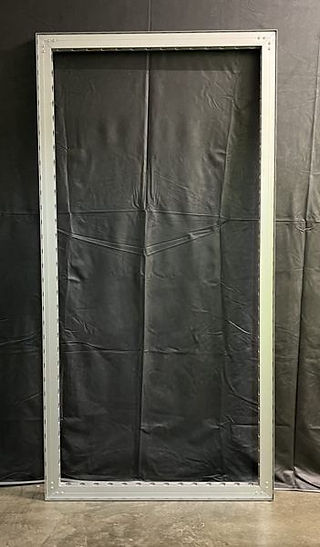

UB-F-003–013 | Mod-U-Lok straight frames ML1S, standard 62mm-grid sizes: 992×1984, 496×992, 496×2480, 496×1984, 496×496, 1488×496 | 13 | Unibox |

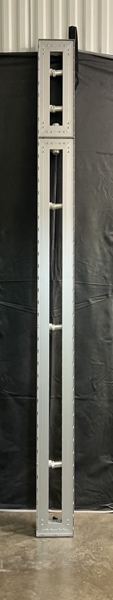

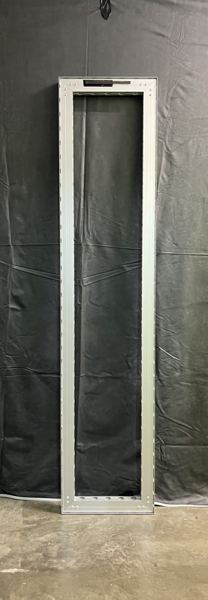

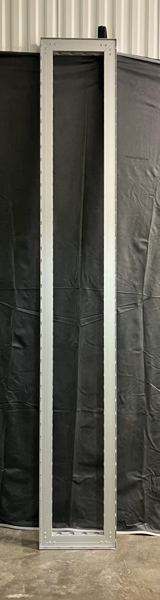

UB-F-001–012 | Custom-width frames: 186×1984, 434×496, 434×1984, 1488×1984, 372×2480 | 9 | Unibox (custom) |

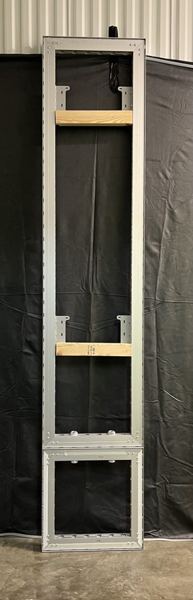

UB-F-014 | 496×2480 frame assembly with steel brackets + blocking for TV / green wall | 1 | Unibox, modified |

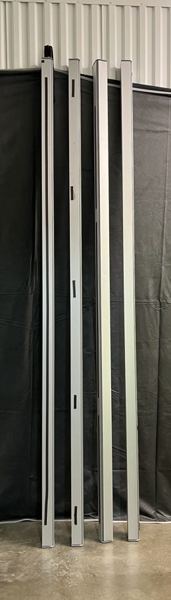

UB-F-017 | Seamless 2-way TFS corner post, 2,480mm | 4 | Unibox |

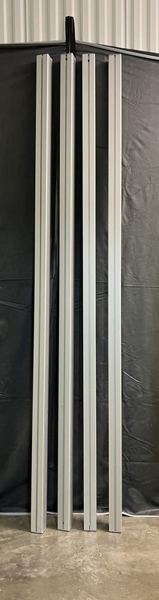

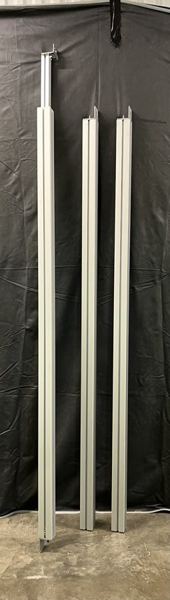

UB-F-018/019 | Four-way posts: 4 × 2,360mm, 3 × 1,916mm with 620mm galvanised extension | 7 | Unibox, modified |
UB-F-020/021 | 620mm pole extensions, 35mm square (3 plain, 3 with bracket) | 6 | Unibox, modified |
UB-F-022–026 | Connector pins (≈80 short, ≈90 long + M18 collars), roof plates (4 × 250, 2 × 375), 14 ceiling brackets, 12 patress brackets | set | Unibox |
UB-F-027/028 | Stanley FatMax Pro-Stack hardware case; 20 transport packers | set | Stanley / Unibox |
Roof · frames, SEG ceilings, timber beams | |||
UB-F-029/030 | Roof type 1: 744×1984 frame, SEG ceiling, 2 wired downlights + 744×744 extension | 2 | Unibox |

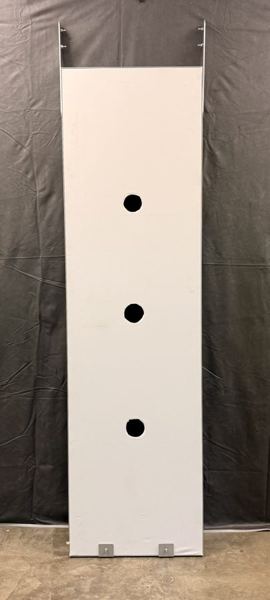

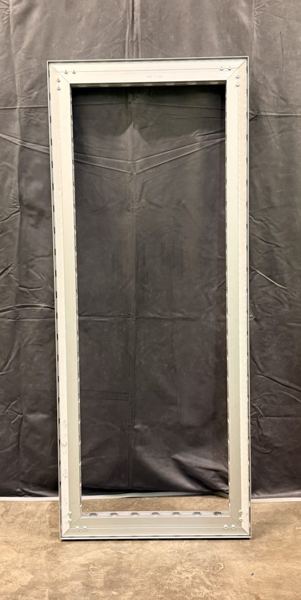

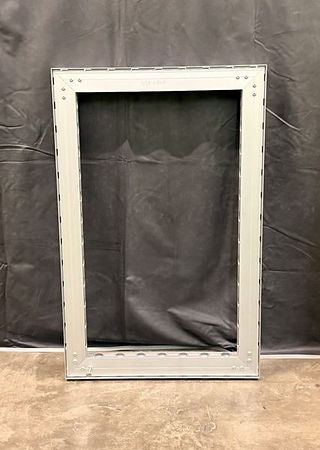

UB-F-031–034 | Roof type 2: 558mm frames 1364 / 1612 / 868 / 1984 (braced, SEG ceiling) | 4 | Unibox |

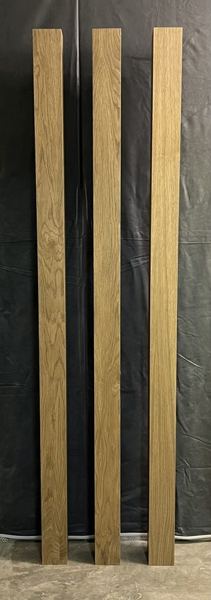

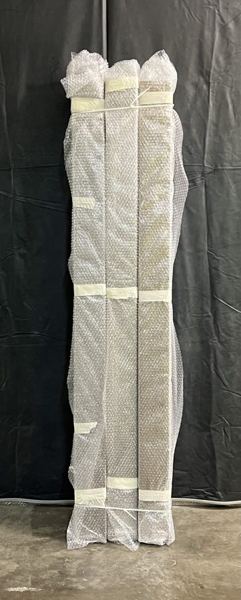

UB-E-010/011 | Oak-effect timber ceiling beams on aluminium inserts, 2,030 / 1,530mm | 6 | Custom |
UB-E-012 | Beam end caps / sleeves, assorted | set | Custom |
Lightboxes & feature units | |||
UB-E-001 | Unibox Ledge 150 lightbox tower 700×150×2480, LED backlit | 1 | Unibox |
UNIT-01 | Backlit logo slat wall, RGBW COB, 200W PSU | 1 | Experio build on Mod-U-Lok |
UNIT-02 | Lockable lightbox counter with PIXLIP GO 1000×1000 SEG lightbox | 1 | PIXLIP / Experio |
UB-E-003 | Illuminated cupboard table, 1000×1000 acrylic top, 200W | 1 | Wrights Plastics |
Lighting | |||
UB-L-018 | RGBW COB LED surround strip, 18m, 300W driver + remote | 1 | — |
UB-L-008–010 | Pendant sets (5), Knightsbridge geometric cages (3), filament lamps (3) | set | Knightsbridge / Colours |
UB-L-016/017 | 320mm LED arm lights (5); beMatrix SAM light units (4) | 9 | generic / beMatrix |
UB-L-001–015 | LED strip reels, drivers, RGBW controllers, downlight spares, sundries | set | Enlite, Aurora |
Feature wall panels | |||

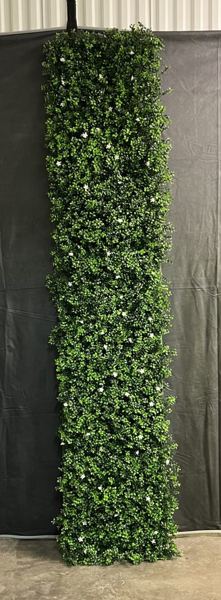

UB-E-015/014 | Artificial green wall, 25 × 500mm panels (6.25m², Class C) + flower corner panel | 1 set | EverGreenery |
Furniture, safety & floor | |||
UB-E-037 | Grey vinyl rolls 1.8×3m and 2.55×3m; grey carpet 2.5×3m | 3 | Tarkett |
UB-S-001–003 | 1kg powder extinguisher, fire blanket, first-aid kit | 3 | Fireshield |
Quantities come from the August 2026 inventory and are confirmed on viewing. Printed graphics, TVs, the TV stand, the fridge, electrical cabling and plugs, and artificial plants are not included in this sale. All frames are bare aluminium, and no fire rating is published for the profile.
Every item, photographed
Each item matches a line of the August 2026 stock inventory and its reference photograph (50 items).
UB-E-001 Unibox lightbox tower, 700 × 2,480mm Qty 1 · 700 x 150 x 2480 (W x D x H) UB-E-003 Illuminated Cupboard & Table Top (mini-fridge housing) Qty 1 · Cupboard: UB-E-010 Custom Wooden Ceiling Beam - 2030mm (2.5m stand) Qty 3 · 2030 x 100 x 100 (L x W x H, hollow tube) UB-E-011 Custom Wooden Ceiling Beam - 1530mm (2m stand) Qty 3 · 1530 x 100 x 100 (L x W x H) UB-E-012 Wood Beam End Caps / Sleeves - assorted sizes (Sets of three) Qty 1 · Various sizes. Section approx. 100mm x… UB-E-013 Wood Slat Closer Panel (logo feature wall, rear) Qty 1 · 485 x 2400 (+100mm height extension = 2500… UB-E-014 Green Flower Wall - Corner Panel Qty 1 · 490 x 2440 (W x H) - depth not measured UB-E-015 Green Wall - Artificial Plant Wall (25 x 500mm panels) Qty 1 · 500 x 500 per panel (0.25 sq m each); 25… UB-E-032 Table Cloth - Black (small) Qty 3 · 1400mm x 1800mm UB-E-033 Table Cloth - Black (large) Qty 1 · 2750mm x 1800mm UB-E-037 Flooring & Carpet Rolls - assorted (SET, sizes TBC) Qty 1 · 1. Grey Vinyl: 180cm x 300cm (approx.) for… UB-F-001 Frame Custom Size – 186 × 1984mm Qty 2 UB-F-003 Frame Standard – 992 × 1984mm Qty 2 UB-F-004 Frame Standard – 992 × 496mm Qty 2 UB-F-005 Frame Standard – 496 × 2480mm Qty 1 UB-F-006 Frame Standard – 496 × 1984mm Qty 2 UB-F-007 Frame Standard – 496 × 496mm Qty 2 UB-F-008 Frame Custom Size – 434 × 496 (496+1984 = 2480 together)mm Qty 2 UB-F-009 Frame Custom Size – 434 × 1984mm Qty 2 UB-F-010 Frame Standard – 1488 × 496mm Qty 2 UB-F-011 Frame Custom Size – 1488 × 1984mm Qty 2 UB-F-012 Frame Custom Size – 372 × 2480mm Qty 1 UB-F-013 Frame Standard – 496 × 1984mm Qty 2 UB-F-014 Straight Frame Assembly - Modified (TV/Green Wall Mount) – 496 × 2480mm Qty 1 UB-F-017 Seamless Corner Frame/Post – 62 × 2480mm Qty 4 UB-F-018 Four-Way Post – 62 × 2360mm Qty 4 UB-F-019 Four-Way Post with Extension Bracket – 62 × 1916 and showing with + 620 ext… Qty 3 UB-F-020 620mm Pole - Extension & Brace – 35 × 620mm Qty 3 UB-F-021 620mm Pole Extension - With Bracket – 35 × 620mm Qty 3 UB-F-022 Short Connecting Pin 35x74 – 35 × 74mm Qty approx. 80 UB-F-023 Long Connector Pin + M18 Collar 35x149 – 35 × 149mm Qty approx. 90 UB-F-024 Roof Plate Connector - 250mm, 2-screw – 250 × 24mm Qty 4 UB-F-025 – 025 Roof Plate Connector - 375mm, 4-screw – 375 × 24mm · Patress Mounting Bracket… UB-F-026 Ceiling Bracket with Short Pin Connectors (x2) – 57.5 × 57.5mm Qty 14 UB-F-027 Bracket & Connector Storage Box (Stanley FatMax Pro-Stack) Qty 1 UB-F-028 Secure Packer - transport protection strip Qty 20 UB-F-029 Integrated Unit - Roof/Ceiling Panel – 744 × 1984mm Qty 1 UB-F-030 Integrated Unit - Roof/Ceiling Panel – 744 × 744mm Qty 1 UB-F-031 Integrated Unit - Roof/Ceiling Panel – 558 × 1364mm Qty 1 UB-F-032 Integrated Unit - Roof/Ceiling Panel – 558 × 1612mm Qty 1 UB-F-033 Integrated Unit - Roof/Ceiling Panel – 558 × 868mm Qty 1 UB-F-034 Integrated Unit - Roof/Ceiling Panel – 558 × 1984mm Qty 1 UNIT-01 Backlit Logo Feature Wall (Integrated Backlit Lightbox) 496 x ~200 (facade extension) x 2480 UNIT-02 Custom Lightbox Cupboard Counter (Lockable, PIXLIP GO) 1100 x 500 x 1052 UB-L-001 – 015 RGBW LED strip - loose coils with 4-core cabling · Mixed controller / connector… UB-L-003 – 006 Warm/white LED strip reels - boxed (black spool) · LED strip reel - IP-rated… UB-L-007 – 013 COB / high-density LED strip - white flexible (bulk box) · Pendant light… UB-L-009 Knightsbridge 'Pendant Cage' geometric shades - boxed Qty 3 boxed UB-L-016 – 018 Wide-spread LED downlight bar - 320mm (generic) · beMatrix SAM light unit ·… UB-S-001 – 003 Fire extinguisher - 1kg dry powder (Fireshield) · Fire blanket - 1.1m x 1.1m…
Built, shown and rebuilt across Europe
FERMA 2024 in Madrid, AIRMIC 2025 in Liverpool, AMRAE 2026 and AIRMIC 2026 in Birmingham, each rebuilt to fit the plot.
FERMA 2024: slat feature wall and lit table FERMA 2024: lightbox tower and timber beams AIRMIC 2025: counter and lightbox AMRAE 2026: pendant-lit beam roof AMRAE 2026: lightbox, slat wall and stools Roof type 1 with downlights through the SEG In store at Weybridge, part-built Slat wall with COB LED, in store
Enquiries and viewing
Offers invited for the complete set.
Contact: Wayne Freeman, Experio Services Ltd · wayne@experio.uk
Location: Weybridge, Surrey. Viewing by appointment. Buyer collects, or delivery by arrangement.
Terms: Sold as one lot, sold as seen. Mains-powered items should be PAT tested before use.
